APC Easy UPS On-Line 20kVA, Rackmount 9U, 230V, Hard Wire, Extended Runtime

True On-Line double conversion UPS delivering 20kVA/20kW of clean, uninterrupted power for mission-critical rackmount applications.

Designed for data centers, banks, hospitals, and any facility that cannot tolerate a single second of downtime — with pure sine wave output, internal bypass, and extended runtime capability.

Intelligent card slot allows network integration for remote monitoring and management.

Specifications

• Model: SRV20KRILRK

• Topology: On-Line Double Conversion

• Capacity: 20000W / 20000VA

• Input Voltage: 230V AC Single Phase / 400V AC Three Phase

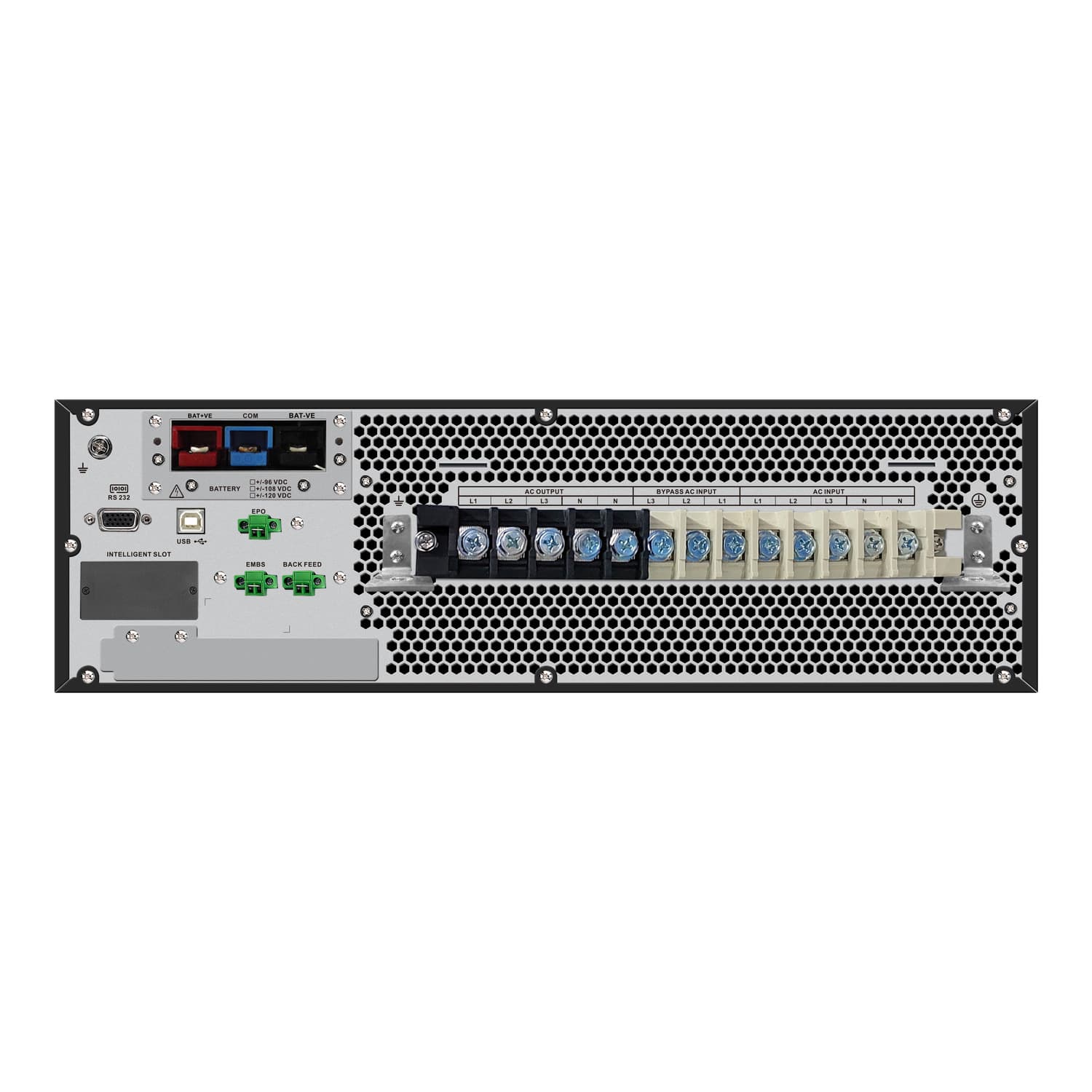

• Input Connection: Hard Wire 3-wire (1P+N+E) / Hard Wire 5-wire (3P+N+E)

• Input Frequency: 40-70 Hz Auto Sensing

• Output Voltage: 230V AC Single Phase (220V / 240V selectable)

• Output Connection: Hard Wire 3-wire (1P+N+E)

• Output Frequency: 50/60 Hz ±3 Hz sync to mains

• Waveform: Pure Sine Wave

• Efficiency: 95% at full load

• Harmonic Distortion: 2%

• Crest Factor: 3:1

• Bypass: Internal (Automatic and Manual)

• Runtime at Full Load (20000W): 2 min 1 sec

• Form Factor: Rackmount 9U

• Intelligent Card Slot: Yes

• Display: LCD

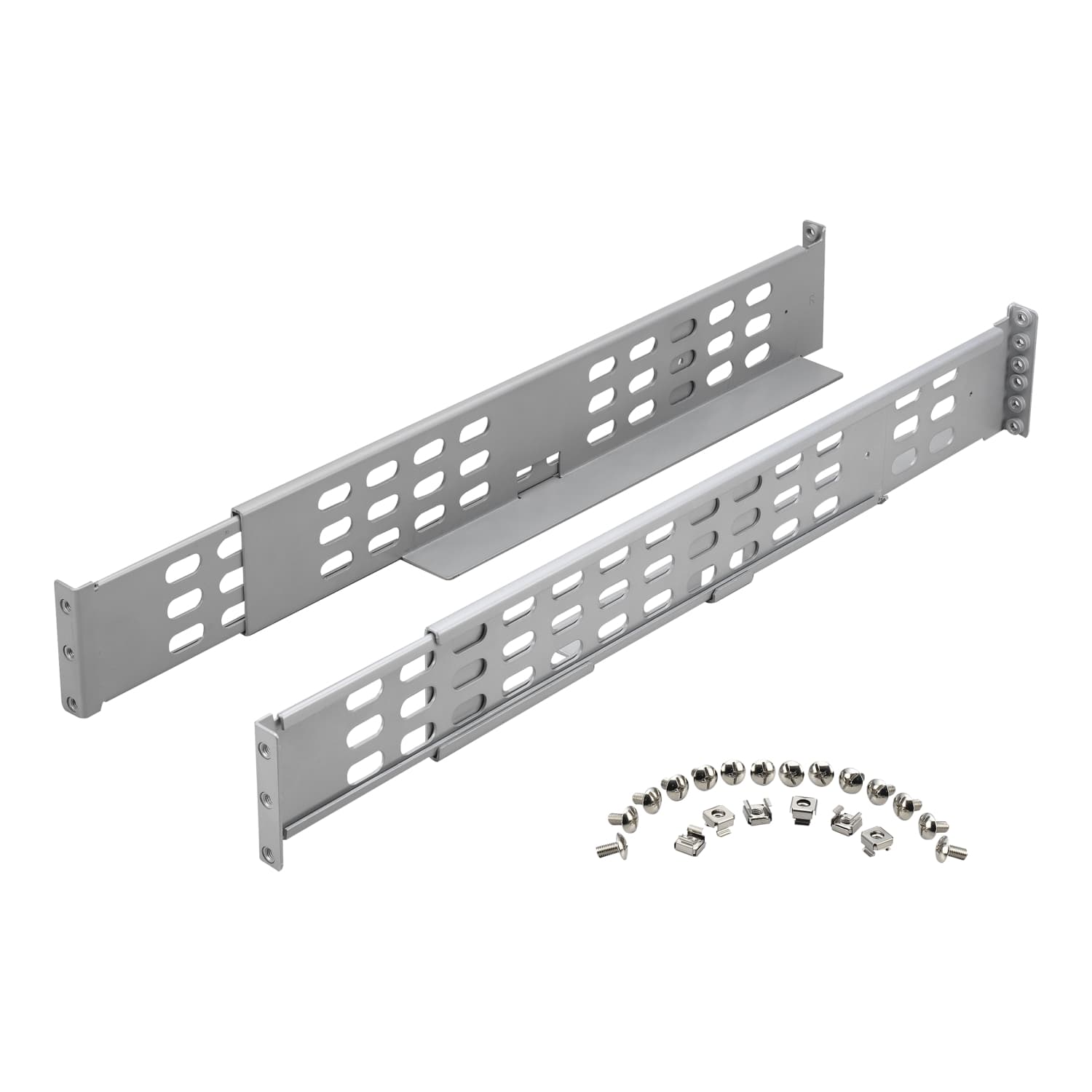

• Rail Kit: Included

Typical Applications & Use Cases: data centers, banks, hospitals, server rooms, critical infrastructure, telecoms
